The Difference Between Baseband and Broadband Video

Have you ever wondered how video magically appears on your TV? The technology behind it involves two key concepts — baseband and broadband video. Understanding the difference is crucial for designing or upgrading a video distribution system. In this article, we'll demystify these terms and explain what sets baseband and broadband video apart.

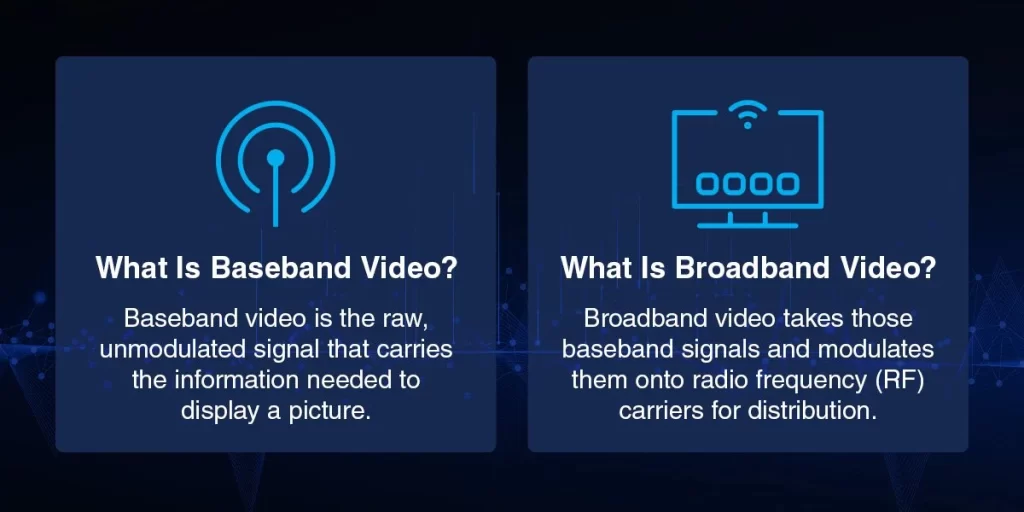

What Is Baseband Video?

Baseband video is the raw, unmodulated signal that carries the information needed to display a picture. It's the native format used by sources like cameras and media players, as well as displays like TV monitors.  Baseband video systems use low frequencies, often below 54 megahertz (MHz), to carry the unmodulated content.

Baseband video is uncompressed, giving the end user the full experience of the video content. With current resolutions such as 4K and 8K, this means content is in excess of 2 gigabits per second (Gbps) and requires dedicated cabling for each display.

Legacy examples include:

  • Component video

  • Composite video

  • Video Graphics Array (VGA)

Modern examples include:

  • High-Definition Multimedia Interface (HDMI)

  • Serial Digital Interface (SDI)

  • Digital Video Interface (DVI)

AV over IP technologies, such as HDBaseT and HDMI extenders, are a network-based form of baseband technology.

What Is Broadband Video?

Broadband video takes those baseband signals and modulates them onto radio frequency (RF) carriers for distribution. Each RF carrier represents a TV channel, such as channel 2 or 3.

Unlike a baseband system, a broadband system broadcasts multiple video feeds as channels to each end point. The end point (receiver) uses a tuner to select the desired content. The traditional broadband spectrum is 54 to 860 MHz, with recent advances increasing the range of broadband transmission.

Using the entire frequency range allocated for TV broadcasting and leveraging digital encoding techniques, a broadband system can deliver hundreds of channels over a single cable, optical fiber or wireless link. Multiple channels are achieved through numerous programs, such as 2.2 or 2.3, within each main channel.

Differences Between Baseband and Broadband Video

While baseband and broadband are both crucial for video delivery, some notable distinctions set them apart.

Signal Format and Transmission

At its core, baseband video is the unmodulated signal coming directly from a source or to a display. It's typically transmitted over dedicated, point-to-point connections, such as fiber, SDI, twisted pair or HDMI. This dedicated transmission limits a baseband link to carrying one video signal at a time.

In contrast, broadband video involves modulating those baseband signals onto RF carriers for distribution. The modulation allows multiple video signals to be transmitted over a shared infrastructure, like a coax network, fiber backbone or wireless system, to reach multiple destinations simultaneously.

Channel Capacity and Bandwidth Utilization

Since a baseband link is a dedicated link to a single video signal, its capacity is inherently limited. The bandwidth of a baseband signal can exceed 10 Gbps for an 8K video. This bandwidth means modern baseband systems require dedicated infrastructure.

Meanwhile, broadband can accommodate hundreds of video channels over a single cable by leveraging the entire frequency range allocated for TV broadcasting. By employing digital encoding techniques and subchannels, a broadband system maximizes bandwidth utilization to deliver a vast array of content.

Equipment and Infrastructure Requirements

Baseband video is the domain of sources like cameras, media players and displays such as monitors and TVs. It is also the domain for video switchers, scalers and extenders. These devices typically have baseband inputs and outputs for interconnection.

Broadband video requires additional gear to operate, including:

  • Modulators to convert baseband signals to RF.

  • Combiners and amplifiers to aggregate and boost the RF signals.

  • Splitters and taps to distribute the signals.

  • Demodulators, such as set-top boxes or tuners, to convert the RF back to baseband for display.

FAQs

To help you understand more about broadband and baseband video, here are answers to the most common questions.

1. What Are Some Advantages of Broadband vs. Baseband Distribution?

Broadband simplifies wiring and reduces costs by delivering multiple video channels over a single cable. It also supports longer transmission distances than baseband, making it ideal for hotels, offices, hospitals or campuses where displays are spread out.

2. What Are Some Common Applications of Baseband Video?

Baseband video is used in various applications where high-quality, uncompressed video is essential, including:

  • High-resolution digital signage.

  • Facilitating AV over IP (AVoIP) workflows.

  • High-resolution medical imaging.

  • Virtual reality (VR) and augmented reality (AR) headsets.

  • Advanced driver-assistance systems (ADAS) and autonomous vehicles.

  • High-speed machine vision.

  • Specialized display and video walls.

  • Livestreaming and broadcast contribution.

3. Why Is a Broadband RF Distribution System Important to Your Customers?

Broadband RF systems provide a simple way to connect many Master Antenna Television (MATV) systems, satellite, off-air, internally generated video and digital signage sources to numerous TV devices without impacting the local area network bandwidth.

While most people think of coax when using a broadband RF video distribution system, it is also advantageous if the broadband RF signal is transported over an intelligent, structured category cabling (i.e. twisted pair) based system for consistent picture quality, plug-and-play ads, moves and changes, and cabling system obsolescence protection — you are ready whenever Internet Protocol Television (IPTV) becomes the video distribution system of choice.
